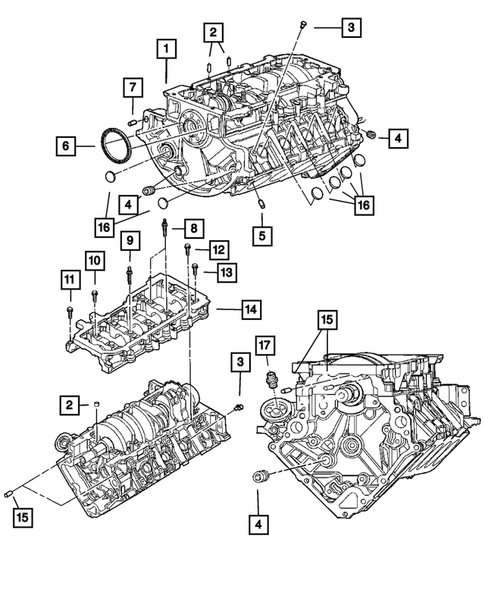

Cylinder Block for 2009 Dodge Dakota
No.
Part # / Description / Price
Price
1
Short Block Engine 1
Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: See Note
1
Long Block Engine 1 Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE. Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: SERVICE WARNING: If The Original Engine Has Experiencd A Catastrophic Failure - Including Piston, Cylinder Bore, Valve, or Valve Seat Failure - The Intake Manifold Must Be Replaced With A New Manifold.. New Part For Core Return
2
Pin, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: [M15X12.5]. Bedplate To Cylinder Block
3
Plug, Right And Left Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: .250-18X.690. Cylinder Block Coolant Drain
MSRP $13.95
$10.04
MSRP $13.95
$10.04
4
Pipe Plug Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: [.500-14X.560]. Cylinder Block Oil Hole
5
Dowel Pin, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.. Cylinder Heads To Cylinder Block
MSRP $9.45
$6.78
MSRP $9.45
$6.78
6
Crankshaft Oil Seal Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Rear
MSRP $48.75
$33.64
MSRP $48.75
$33.64
7
Block To Clutch Housing Dowel, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: [1/2 x 3/4]. Cylinder Block To Transmission
MSRP $12.50
$8.89
MSRP $12.50
$8.89
8
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M11X1.50XM8X1.25X142.75. Crankshaft Bearing Cap
9
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M11X1.50XM8X1.25X118.50. Crankshaft Bearing Cap
10
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: M11X1.50X90.00. Crankshaft Bearing Cap
MSRP $5.20
$3.69
MSRP $5.20
$3.69
11
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: M10X1.50X55.00. Crankshaft Bearing Cap
MSRP $5.50
$3.93
MSRP $5.50
$3.93
12
Hex Head Screw, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M8x1.25x50. [M8x1.25x50.00]. Crankshaft Bearing Cap
MSRP $2.60
$1.88
MSRP $2.60
$1.88
13
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.7L V8 FFV ENGINE.
Description: M10X1.50X83.50. Crankshaft Bearing Cap
15
Dowel, Mounting Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: Bedplate And Front Timing Case Cover To Cylinder Block
MSRP $8.25
$5.87
MSRP $8.25
$5.87
16
Cup Plug Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: ID=M32.26 OD=35.00 THICK=1.37. Axle Shaft Flange Plug
MSRP $6.80
$4.78
MSRP $6.80
$4.78
17
Oil Filter Connector Mopar
Mopar Notes: Engines: 3.7L V6 ENGINE. 4.7L V8 FFV ENGINE.
Description: M22X1.50
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
