Case and Extension for 2002 Dodge Ram 1500
No.

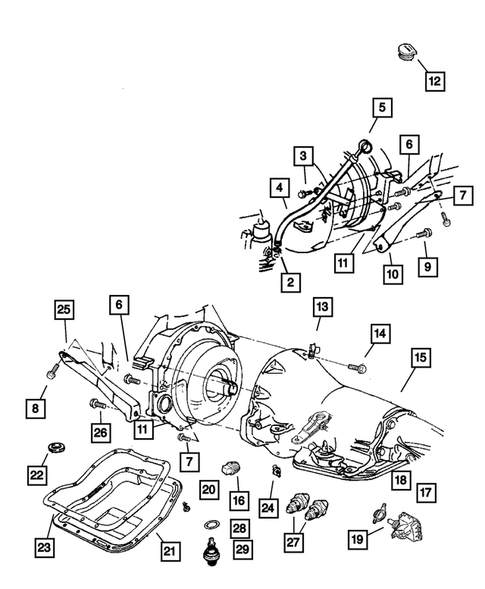

Part # / Description / Price
Price
N/A
Transmission Seal And Gasket Package
Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Also Used In The AN1
2
Oil Filler Tube Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: OIL FILLER TUBE
3
Screw And Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .375-16x1.00. .375-16x1.00
5
5
6
Hex Head Screw And Washer Mopar
Mopar Notes: Transmissions: 5-SPEED HD MANUAL TRANSMISSION. ALL AUTO TRANS (DO NOT USE 2010+).
Description: .437-14x2.00. Pinion Nose Bracket to Transmission Outboard
MSRP $12.70
$9.14
MSRP $12.70
$9.14
7
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. Transmissions - All Manual.
Description: .250-20x.500. Differential Bearing Adjusting Lock to Bearing Cap
MSRP $9.45
$6.84
MSRP $9.45
$6.84
8
Hex Head Bolt And Washer, Mounting Mopar
Mopar Description: .375-16x1.50. Transmission Case to Cylinder Block
MSRP $12.50
$9.08
MSRP $12.50
$9.08
10
11
Transmission Package Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 52119845AA(Package Contains 52119845AA Transmission, K4736591 Converter, K1949765 Bolts)
13
Wiring Clip Mopar
Mopar Description: For Electrical Connector Repair Information Visit The Electrical Connector Website
13
Wiring Clip Mopar
Mopar Description: For Electrical Connector Repair Information Visit The Electrical Connector Website
MSRP $6.20
$4.36
MSRP $6.20
$4.36
16
Pressure Check Plug Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: [.125-27x.436].
17
Neutral Safety, Back Up Switch Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Transmission Range Sensor.
17
Neutral Safety, Back Up Switch Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Transmission Range Sensor
18
Switch Bracket Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Neutral Start & backup Lamp Mounting. Neutral safety switch. Nuetral safety switch.
20
Hex Head Screw And Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .312-18x.625
MSRP $12.65
$9.08
MSRP $12.65
$9.08
22
Transmission Magnet Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 52099211ab.
MSRP $14.10
$10.04
MSRP $14.10
$10.04
23
MSRP $68.25
$41.77
27
Inverted Flare Nut Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .62-18
MSRP $15.85
$11.37
MSRP $15.85
$11.37
28
Trans Speed Sensor O Ring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: 2.70 THK
29
Transmission Output Speed Sensor Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: Input and Output.
MSRP $75.75
$52.27
MSRP $75.75
$52.27
No.

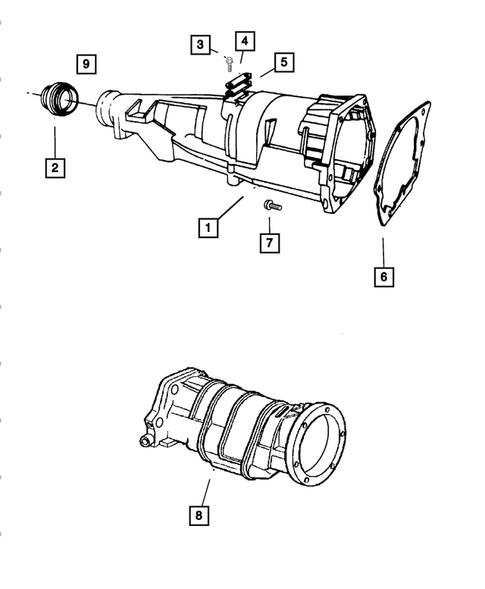

Part # / Description / Price
Price
1
Transmission Rear Case Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: With Stamp #52119751AA
2
Output Shaft Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 5-SPEED HD MANUAL TRANSMISSION. MULTI-SPEED AUTO 45RFE TRANSMISSION.
Description: Rear Extension Seal 2WD.
MSRP $52.30
$35.88
MSRP $52.30
$35.88
7
Hex Flange Head Screw Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION.
Description: .375-16x1.38
9
MSRP $31.50
$19.28
